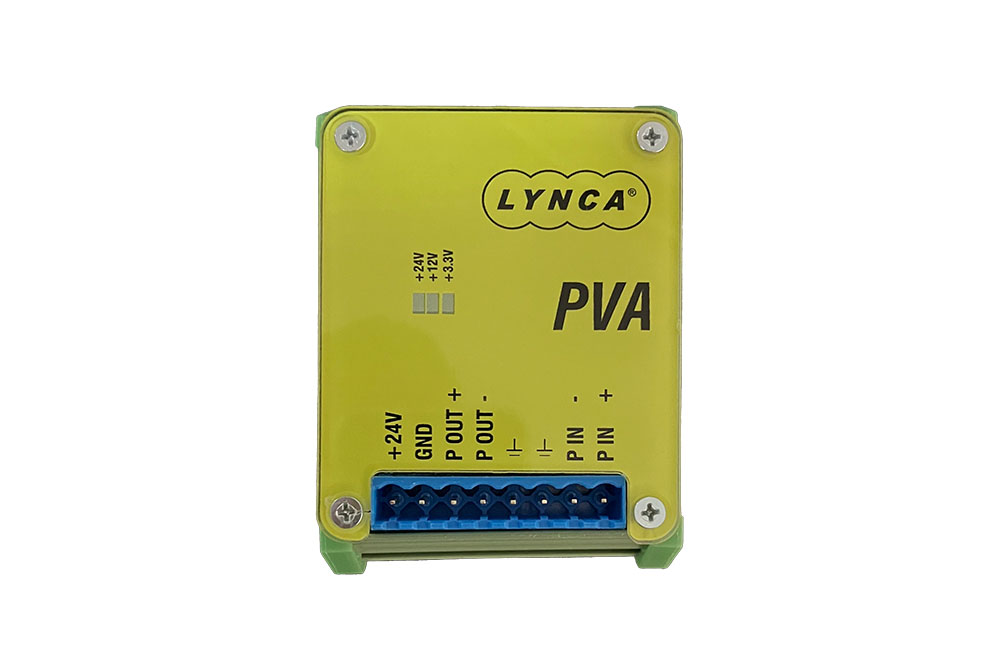

LYNCA PVA

LYNCA PVA is a single channel digital valve amplifier
developed to drive proportional hydraulic valve coils.

LYNCA PVA supports both proportional pressure
valves series such as Hoerbiger and Rexroth.

Input channel1 x +/- 10 V DC (12bits ADC)
Output channel1 Channel 0.5 - 2.0 A adjustable with jumper, with short protection
Power supply12..30 VDC
DimensionsL x W x H = 87 x 63 x 44 , weight = 95gr.
Housing and connectorsDIN Rail mounted housing , screw terminals AWG 16-30 wire
Power consumption50mA logic + valve current (2.1 A max.)
Temperature range-20° … +60° C
